Description

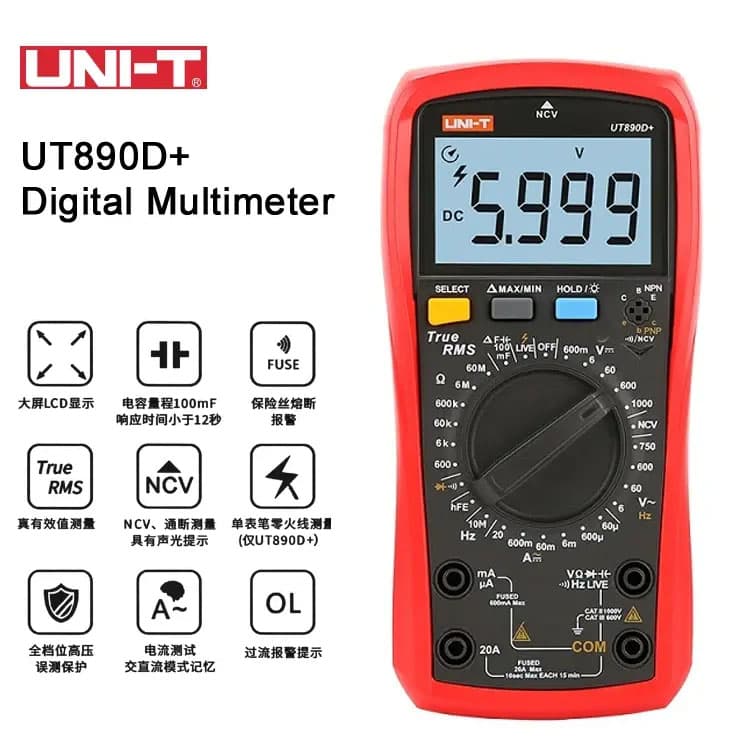

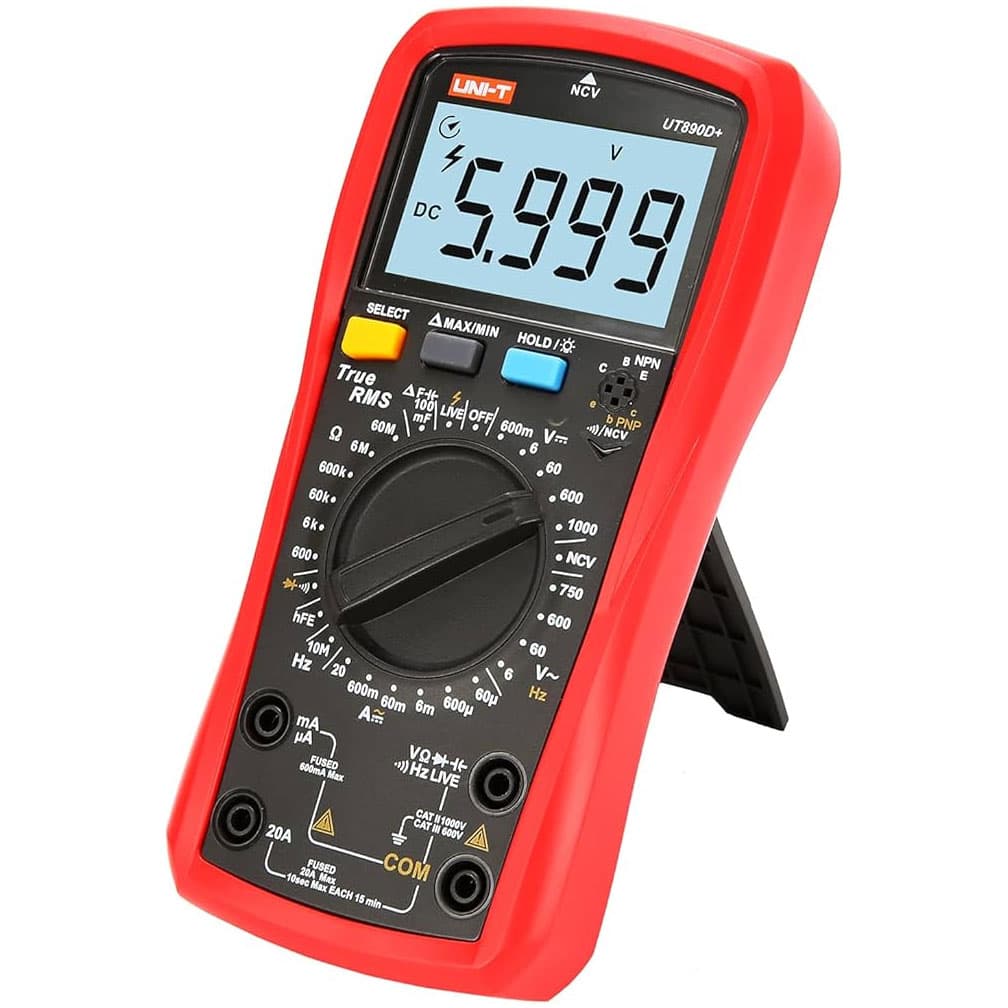

Product: Uni-T Digital Multimeter UT890D+
Brand: Uni-T
Model: UT890D+
Specifications:
- Display: 6000 Counts LCD with Backlight
- True RMS: Yes
- DC Voltage: 600mV / 6V / 60V / 600V / 1000V
- AC Voltage: 6V / 60V / 600V / 750V
- DC Current: 60μA / 600μA / 6mA / 60mA / 600mA / 20A
- AC Current: 60μA / 600μA / 6mA / 60mA / 600mA / 20A
- Resistance: 600Ω to 60MΩ
- Capacitance: 6nF to 100mF
- Frequency: 10Hz – 10MHz
- NCV Detection: Yes
- LIVE Wire Detection: Yes
- Diode Test: Yes
- Continuity Test: Yes (Audible & Visual)
- hFE Transistor Test: Yes
- Data Hold: Yes
- MAX/MIN: Yes
- Relative (REL) Mode: Yes
- Auto Power Off: Yes
- Safety Rating: CAT III 600V / CAT II 1000V
- Power Supply: 2 × AAA Batteries
- Dimensions: 183 × 88 × 56 mm
- Weight: Approx. 346 g
Key Features
- True RMS measurement for accurate AC voltage and current readings
- Large 6000-count LCD display with backlight
- Measures AC/DC Voltage up to 1000V DC and 750V AC
- Measures AC/DC Current up to 20A
- Resistance measurement up to 60MΩ
- Capacitance measurement up to 100mF
- Frequency measurement up to 10MHz
- Non-Contact Voltage (NCV) detection
- LIVE wire identification function
- Diode, Continuity & hFE transistor testing
- MAX/MIN and Relative (REL) measurement modes
- Data Hold function
- Automatic fuse blown detection
- High voltage protection
- Over-current alarm (≥20A)
- Auto Power Off for longer battery life
- Low battery indication
