Description

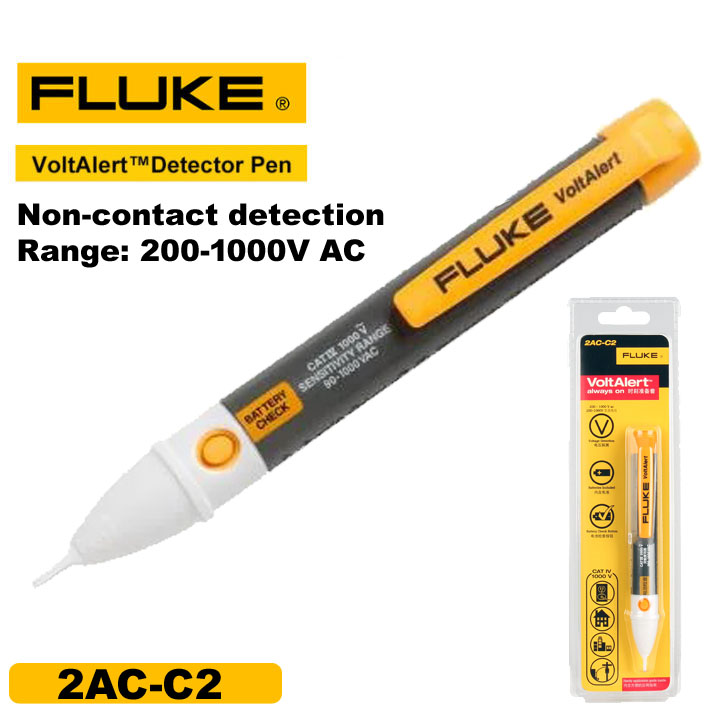

Product: FLUKE 2AC-C2 Non-Contact Voltage Tester
Brand: FLUKE
Model: 2AC-C2
The Fluke 2AC is the latest addition to the VoltAlert™ AC non-contact voltage tester family. It is designed to be pocket-sized and easy to use. The tip of the pocket-sized tester will glow red when within close proximity of an outlet, terminal strip, or power cord where voltage is present. The 2 AC is always on, with a battery check function to make sure the tester is working properly.
Specifications:
- Operating Principles: Senses the steady state electrostatic field produced by AC voltage through insulation without requiring contact to the bare conductor. A red glow at the tip indicates the presence of voltage.
- Safety Compliance: Meets IEC 61010-1:2001, UL 61010-1 (2nd ed.), CAN/CSA-C22.2 No. 61010-1-04, and ISA-82.02.01 Pollution Degree 2
- EMC Compliance Meets IEC 61326-1:2006
- Operating 200 V AC to 1000 V AC, CAT IV 2000 V rated
- Temperature (Operating and Storage) -10°C to 50°C (-14°F to 122°F)
- Operating Humidity Ranges
- 0% to 95% (0°C to 30°C)
- 0% to 75% (30°C to 40°C)
- 0% to 45% (40°C to 55°C)
- Altitude: 2000 m (CAT IV 1000 V)
- Cleaning: Clean with damp cloth
- Battery Life: Typical battery life of greater than one year
