Description

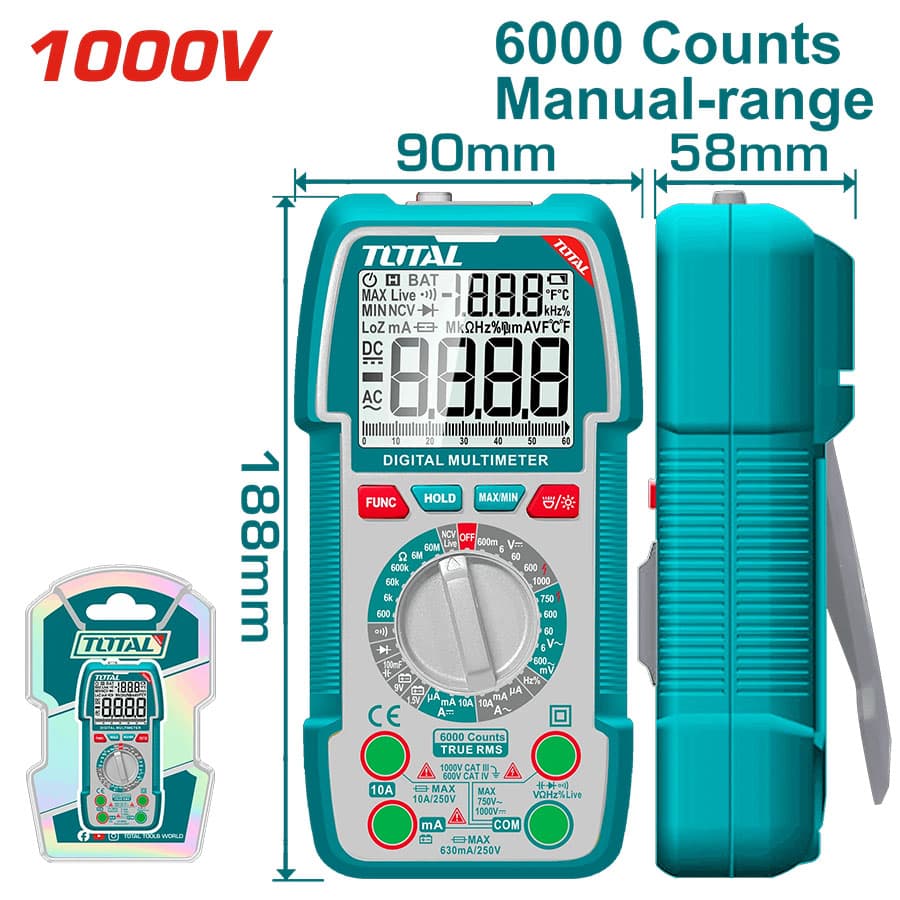

Product: TOTAL 1000v Digital Multimeter
Brand: TOTAL
Model: TMT5310002
Specifications:
- Display: True RMS, 6000 counts
- DC Voltage: 600mV / 6V / 60V / 600V / 1000V
- AC Voltage: 600mV / 6V / 60V / 600V / 750V
- DC/AC Current: 6000µA / 60mA / 600mA / 10A
- Resistance: 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ
- Capacitance: 10nF / 100nF / 1000nF / 10µF / 1000µF / 10mF / 100mF
- Frequency: 10Hz to 10MHz
- Duty Cycle: 1%–95% ±(2.0% +3)
Key Features:
- True RMS 6000-count digital display for clear and reliable readings
- DC voltage measurement up to 1000V
- AC voltage measurement up to 750V
- Measures AC/DC current up to 10A
- Resistance measurement up to 60MΩ
- Capacitance measurement up to 100mF
- Frequency measurement up to 10MHz
- Non-contact voltage (NCV) detection for convenient voltage checking
- Live line and neutral line distinction
- Diode testing function
- MAX/MIN measurement function
- Data Hold function for keeping readings visible
- Built-in LCD backlight for improved visibility in low-light conditions
- Flashlight function for working in dark areas
- Low-battery indication
- Input jack LED indicator helps identify the correct input connection
- Powered by 3 × LR03 AAA batteries
